Rail Live 2019: Highlights - IEPs, battery trains and induction welding

In my first RailLive 2019 post I wrote about the UK's first hydrogen powered train which caused quite a stir at this year's event. In this post I wanted to cover some of my highlights from the event. The site on which RailLive is held is enormous and there is a huge amount to see, so I chose before hand what I wanted to try to see in the limited time that I had

Mirage Rail induction welding

One of the first displays that I set time aside for was that of Mirage Rail who were demonstrating their mobile induction welding system. Using electromagnetic induction to weld sections of rail together is nothing new, however the mobile system developed by Mirage is unique.

The whole system which includes a generator, HIAB and induction welder can be mounted on a single rail trailer and towed by an RRV to wherever it may be required. The image below shows the entire system mounted on a rail trailer.


The induction welder which is manoeuvred over the rail using the HIAB, houses an induction coil which generates high-frequency electromagnetic fields to heat 2 sections of rail to 1300°C, the rails are then forced together using hydraulic rams which are clamped to the rails. As well as joining the rail, the system also has stressing capabilities built in. Some of the other benefits listed by Mirage rail include; “no operator exposure to molten metals, Reduced Operator risk, Automatic Shearing, No gas cylinders or hoses required for pre-heating and Low energy consumption (150KVa)

The video below shows the induction welder in action, from start to finish.


 LNER class 800 AZUMA

RailLive 2019 like previous years had a massive array of rail plant on display and I hope to cover more of that in a future blog.  The event isn't solely focused on rail engineering or rail plant however, it also provides train manufactures, ROSCOS and train operating companies (TOCs) the opportunity to show off the latest trains which are being delivered to the UK network.

This year LNER brought along one of their new class 800 AZUMAs and invited visitors to come on-board and take a look around. I didn't want to give this opportunity a miss as it's unlikely I'll be able to ride one any time soon. As someone who lives and works in the North West I don't often get the chance to head over to the east of England, or South West where class 800s are also in service.


Passengers who live along the west coast corridor had up until now benefited from  some of most modern intercity trains on the network. The class 390 Pendolinos which were introduced between 2001 and 2004 revolutionised intercity travel along the WCML and were in part responsible for the doubling of rail passenger numbers on the WCML. The sleek, modern and fast trains cut journey times and introduced passengers to a whole new world in terms of rail travel.

It is hoped that the class 800s will have a similar affect on ECML routes to London. The AZUMAs will provide more capacity, with an additional 100 seats per train and it is hoped that there will be journey time improvements with the new timetable in 2021. The journey time savings probably wont be as dramatic as those achieved on the WCML with the Pendolinos, however new more spacious trains with modern features is bound (hopefully) to persuade even more people living along the ECML corridor to take the train.

There is one subject that does keep cropping up, and that is the standard class seating. Having read and heard that the standard class seats are not particularly comfortable I had to try one out for myself. Straight away I understood what people have been saying, the seats are firm, very firm. On the plus side there is plenty of legroom, not something you get very much of in a Pendolino in standard class, believe me. So there are some pluses and minuses, and if you want to get the maximum number of seats in a train, all while providing good legroom, PRM toilets, luggage and bike storage and a cafe, then something does have to give (or not give, if you're talking about the seat padding) to make extra space. Reducing the thickens of each seat by a few centimetres soon adds up to a lot of space saved.


Innovation Hub



Over in the Innovation HUB there were seating solutions which did seem to save space but were actually comfortable to sit on. No I'm not talking about the ones pictured directly below, they are seating solutions for high capacity trains and are designed for short journeys. More of a perch than a seat, they offer maximum capacity whilst providing something which should be a lot more comfortable than just standing and the ones on the right had USB charging points. I'm not sure how popular they would be here in the UK, but I'm sure if people were given the choice between standing or perching on a metro or underground train, they would choose perching.



The picture below shows standard class (left) and first class (right) seating configurations fitted to the class 319 which was home to the Innovation Hub. I quipped we could do with some first class seating in Northern's class 319s, I don't think I was the first person to say that. More interesting though, keeping the AZUMA seating in mind, was the standard class seating arrangement. The seats appear to be light-weight and have minimal foam padding just like the AZUMAs, but these seats seemed so much more comfortable. So perhaps it is possible to design a space saving seat that isn't rock hard!



Class 230 D Train fast charging

Porterbrook with their HydroFLEX unit aren't the only company providing solutions to the 2040 deadline for the banning of diesel-only trains. Vivarail have been working on number of solutions which includes diesel electric hybrids, which will hopefully enter service with TfW Rail this year. Last year they also showcased a battery version of the class 230 D Train, the 2 car unit had 4 battery rafts each providing 106kw. This year Vivarail had a single car battery vehicle on display. The unit was at the event to promote a fast charging system developed by Vivarail which can charge a battery powered train in as little as 7 minutes, providing enough charge for a range of 60 miles.


The system comes in 2 part, first the static section which can be located at a terminus, consisting of short sections of 3rd and 4th rail which provides the charge. The other part is the carbon ceramic shoe gear which has been designed specifically to be able handle the high currents involved.

As well as providing hybrid and full battery versions of their class 230 D Train, Vivarial also announced in May this year that they have teamed up with Arcola to develop a hydrogen fuel cell variant. The hydrogen powered unit is still in the development stage, but Vivarail say the first prototype should enter the testing phase in early 2020.

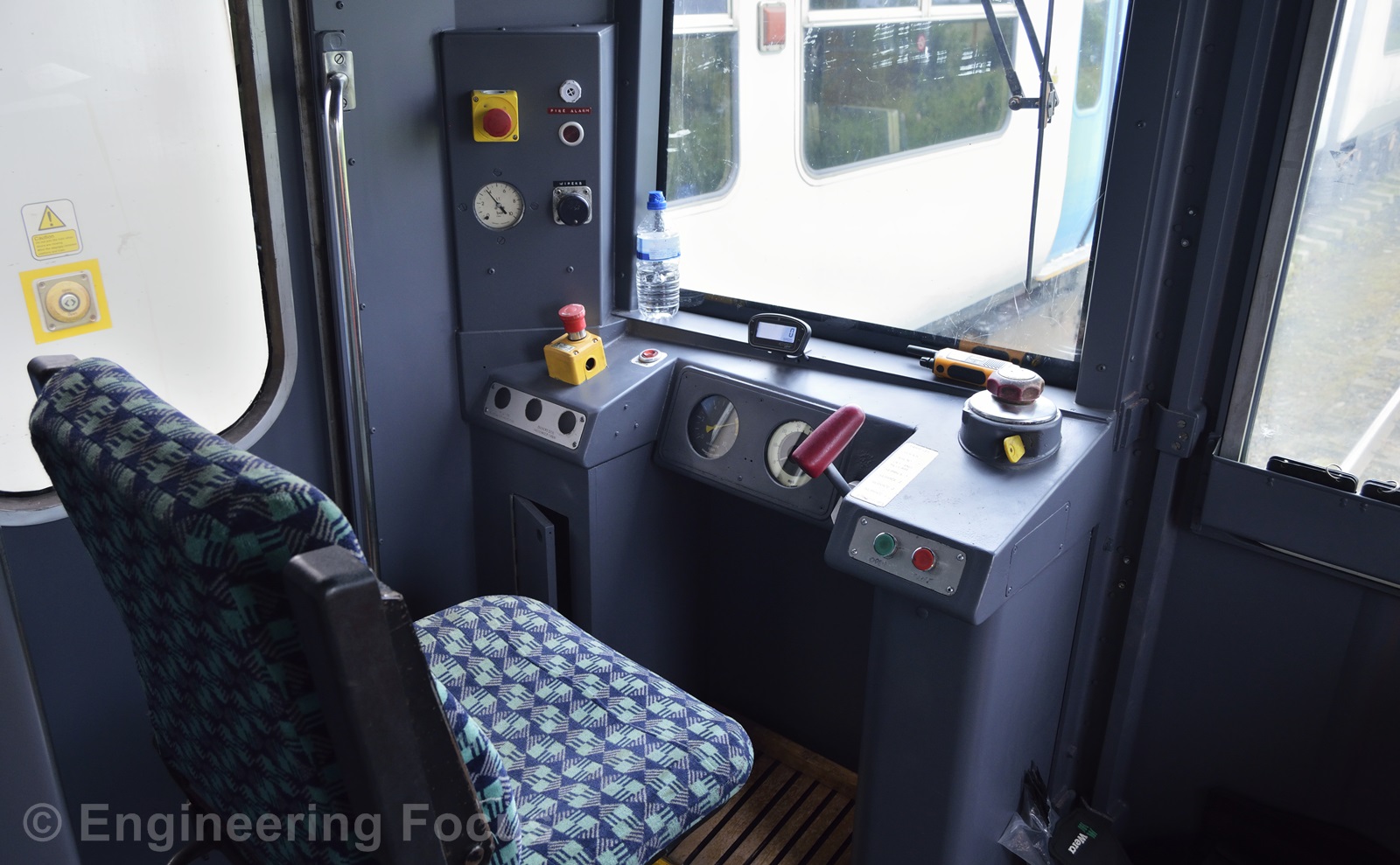

On a final note, I thought it was interesting being able to see inside the cabs of both the class 230, pictured below and the class 800, bottom image. The cabs are worlds apart, with the class 800 looking more like the controls of the Star Ship Enterprise. But the simple yet functional cab of the class 230 still gets the job done.







Thursday, 20 June 2019

RailLive 2019: UK's first passenger carrying hydrogen train

In 2018 the UK Government announced its intention to phase out “diesel-only” trains from the UK rail network by 2040. An ambitious target which would be nearly impossible to achieve through electrification of the rail network alone. According to the DfT in 2009 just over 5000km [1] or roughly 33% of the UK's rail network was electrified, since then, and despite a wide spread programme of electrification between 2014 and 2019, that figure has only increased by an estimated 1000km. Given that the length of the UK rail Network is 16,000km, Network Rail would have to electrify 500km of railway every year for the next 20 years to electrify the remaining network by 2040. Considering it has taken 5 years and cost in the region of £4-5bn to electrify just 1000km of railway you can see how this would be a challenge to say the least.

This means then, that the challenge to phase out diesel-only trains by 2040 has been passed to train manufacturers and rolling stock leasing companies (ROSCOs). I'm fairly certain there will be some diesel-only trains still in operation after 2040, as Northern's class 195s which are being delivered now and Transport for Wales' new units which wont be delivered until 2021 will be powered solely by diesel. It is inconceivable that the government would force ROSCOs to scrap or re-engineer rolling stock which will be 20 years old or less by 2040, that would be wasteful and expensive. However the challenge faced by ROSCOs and manufactures is to develop new ways to power trains between now and 2040.

Luckily it seems that companies and organisations in the UK are well on the way to developing new power technologies which will eventually put an end to diesel-only trains, whilst not requiring the electrification of the entire UK rail network. Vivarial displayed a battery version of their D-Train at RailLive last year and has since gone on to develop a fast charging solution, which can charge a set of batteries in 8 minutes, providing a range of 60 miles. I will be writing more about that in a future blog.

Porterbrook Leasing have also been developing their own upcycled, re-engineered rolling stock based on the class 319 of which 84 were built. Porterbrook already has orders for a tri-mode class 769 variant of what they call their “Flex” units, which are currently having diesel engines fitted, allowing them to switch between DC, overhead and no-electrified lines. Transport for Wales, Northern and Great Western Railway are expecting units, with a total of 38 units on order.

Not content with converting 319s to tri-modes, Porterbrook, working in collaboration with The University of Birmingham’s Centre for Railway Research and Education (BCRRE) have developed the UK's first hydrogen powered train. The first “HydroFLEX” unit was demonstrated at this year's RailLive event, taking passengers gingerly along a section of track at the Quinton Rail Technology Centre.

You can see a short video of the HydroFLEX in action below

The unit on display was powered by a singe 100kw hydrogen fuel cell combined with a 100kw battery and was carrying 20kg of hydrogen. The next step is to fit the unit with 2, 100kw fuel cells and 2, 100kw batteries, before beginning testing on the mainline. The unit will be able to hold 200kg of hydrogen in total, which it is estimated should be enough to power the unit for 1600km. The fuel cells and tanks, as well as the control systems are all housed in 1 of the 4 carriages.

Fuel delivery system

The first public outing for the HydroFLEX has caused quite a stir, with the BBC attending to film the train in action and to interview those involved. The team from Porterbrook, BCRRE and Fuel Cells Systems who supplied the hydrogen were busy ensuring that everything ran smoothly and were on hand to answer any questions.

Alex Burrows, Director at Birmingham Centre for Railway Research and Education, commented: “This is a great success story for the UK Rail Industry, which shows our capability and commitment to helping the government meet decarbonisation targets. Key to this success is the close partnership between academia and industry which has enabled us to pool the expertise needed to rapidly progress this technology from concept to full-scale working demonstrator.


The demonstration seems to have been a real boon for the UK rail industry, generating positive news for the industry which doesn't always get an easy ride from the mainstream media. The HydroFLEX demonstrates that the UK rail industry can deliver innovative solutions to looming challenges, and that the UK can be a world leader in the development of alternative power systems for rail vehicles.

The fuel cells and batteries themselves are based on tried and tested technology, and have been sourced from around the world. What makes the HydroFLEX innovative is the control system being developed by BCRRE. The complex control system must work seamlessly to balance fuel delivery and energy output, whilst monitoring the battery and energy recovery through regenerative breaking. The system is what brings everything together to make the HyrdoFLEX a unique and world leading train.

Although powering trains with hydrogen fuel cells may not be the only answer to removing diesel-only trains from the UK rail network, it is one solution that could help the government deliver its 2040 promise. Apart from the remaining class 195s and Civity based DMUs to be delivered to TfW, which should end their service some time around 2050.
