Rail Live; plant and engineering innovation [part 2]

In the first part of my Rail Live special I looked at some of the rolling stock that was on display, but primarily the event is intended to bring together a wide variety of railway infrastructure and service providers from across the sector, from specially designed rail plant to railway specific services.


FLOW bridge


One of the first stands I visited was that of FLOW Bridge, this innovative curved, modular bridge has been developed by Network Rail to provide a cost-effective and visually striking alternative to traditional foot crossings.


The bridge was developed in just 11 months and is made out of lightweight fibre-reinforced polymer (FRP), which at 20 tonnes is half the weight of an equivalent steel or concrete bridge.



FLOW bridge at Rail Live 2021


FLOW stands for;



  • F – Fibre Reinforced Polymer, incorporating natural and sustainable materials.
  • L – Lower cost and lighter weight, in comparison to traditional steel bridges.
  • O – Optimised design to incorporate both architectural forms and functional needs to maximise operational use.
  • W – ‘Working’ bridge with monitoring built in to support asset management.



The bridge is very much still in the development phase with work continuing to develop a fully accessible version, but it is hoped that bridges based on this design could be used as a cost-effective way for Network Rail to eliminate level (foot) crossings. It is estimated that FLOW could be delivered for just half the cost of a steel or concrete bridge.



Not only is the bridge visually striking but it also has some clever features which set it apart from other bridges. One feature is the concrete-less foundation, which could save on cost and Co2. The bridge instead uses a steel pad (the only steel used in the whole structure), to spread the load of the bridge.




People have commented that this isn't the first polymer-based bridge, but I think what makes this different is how it looks. Steel and concrete bridges often look unattractive and out of place within their surroundings, whereas I think this bridge looks attractive and could be adapted to fit within rural or urban environments and would be an asset to a community rather than just a functional amenity. It will be interesting to see what the ramp version looks like, as current ramp designs often look oversized and out of place.


Coombes wood chipper


The day before the event Nigel Harris tweeted an image of a giant piece of equipment which piqued my interest. I had a vague idea of what could it be, but wanted to check it out for myself to see what it was.


It turned out to be an enormous wood chipper, but not an ordinary wood chipper. This 500hp beast is powered by an engine from a Scania truck mounted on John Deere 1510 E foresty forwarder, the largest forwarder John Deere manufactures.



Coombes wood chipper at Rail Live 2021


Whilst the mammoth machine wasn't designed specifically with rail in mind it is currently being used during the construction of HS2 and can be used to clear vegetation from railway sites. The chipper itself can chip trees up to 85cm in diameter, with the chips fed into a 28m³ bin. Once full the harvester can be driven to a nearby access road to discharge the chips into a waiting high-volume walking floor biomass trailer. To discharge the chips the entire bin is lifted to the height of the top of the trailer and then tips the entire 28m³ contents directly into the trailer.


Chipping trees or vegetation on-site or directly onto railway embankments is becoming less of a common practice nowadays for several reasons. For one, wood chips are an increasingly valuable commodity, the representative from Coombes was keen to say that the chips don't simply go to waste, they can be sent off to the energy industry, to power stations such as Drax, or to the wood processing industry. Another reason why it's no longer desirable to chip onto embankments in particular, is because wood chips can make embankments unstable and as they rot down can encourage further vegetation growth.


The representative from Coombes was also keen to stress that they're not just aimlessly cutting down trees and that a lot of planning has gone into deciding which trees to cut down. Coombes have their own team of ecologists to ensure that they're following all current guidelines and laws designed to protect wildlife. Unfortunately, it's simply a fact that to build any new infrastructure such as a new railway or road, that some trees will have to cut down. I know that felling to make way for HS2 has caused a lot of anger which is being targeted at HS2 contractors, I also know that misinformation is playing a big part in that anger. But it should be pointed out that HS2 Ltd and contractors working on HS2 are going to great lengths to ensure that they're removing trees and vegetation only where necessary.


QTS group vegetation management


QTS Group also had a range of specially designed vegetation management equipment on display. The QTS range is designed more with trackside vegetation clearance in mind and the company has a wide range of road-rail vehicles at its disposal. Equipment such as the 460hp "Mega Chipper" which can chip trees up to 60cm in diameter. The chipper can propel itself overground on caterpillar tracks or rail via hydrostatically driven rail wheels.



QTS vegetation compactor (left) and "Mega chipper" (right)


If it's not possible to chip on the railway then QTS can use its one of a kind rail-mounted vegetation compactor to remove material for disposal off-site. The compactor is designed to work alongside one of their Liebherr road-rail excavators fitted with a tree shear. The trailer can hold up to 10 times the volume of a traditional trailer providing substantial efficiency savings. Also, the Liebherr RR-excavator and compactor only requires a 2 person crew which increases safety and productivity.


JCB material handling


Working on the UK's rail network is becoming increasingly challenging, especially in urban areas where space may be at a premium or where noise and vehicle emissions may be an issue.


With this in mind, JCB has been leading the way in providing innovative solutions for the movement of materials on site. Pictured below is the JCB ROTO which is a telescopic handler with a difference. It can be used as a standard telehandler with forks to move materials around, working in this mode it has a 2.5-tonne capacity and a reach of 5.5m. But the ROTO is a rotating telehandler which means the body can rotate independently, making the placement of materials much easier in confined spaces. The ROTO can also be fitted with a winch and used as a 5.5-tonne crane with a 20m lift height. In addition, the ROTO can be fitted with a remote-controlled access platform, which means workers can take control of the ROTO from within the platform.



JCB ROTO at Rail Live 2021


JCB also has solutions if noise or emissions are an issue and is leading the way when it comes to battery-powered equipment. Also on display at the VP plc stand was a JCB 525-60E, which is a compact electric telehandler. The 525-60E has a 2.5-tonne lifting capacity with a lift height of 6m. It's fitted with a 24kwh battery which can provide a full days operation on a single charge. Being electric makes it perfect for working indoors or in confined spaces.



JCB 520 60 E


Working to maintain and upgrade the UK's railways may be increasingly challenging, but it's clear from the equipment and services on display at Rail Live 2021 that companies are always looking for innovative solutions meet those challenges.



 Twitter - Facebook - Youtube




Thursday, 24 June 2021

Rail Live 2021; rolling stock highlights

Rail Live "The only exhibition to bring the entire rail industry together in a real railway environment" returned for 2021 after the pandemic forced organisers to cancel the event in 2020. It's no surprise then that Rail Live 2021 seemed bigger than ever, not only with the usual live demonstrations that visitors have come to expect, but this year the Honeybourne shuttle made a return courtesy of Vivarail, Transport for Wales and SLC Operations who operated the service on behalf of Vivarail. Another train that will also be serving on the Wirral was also on display, one of Merseyrail's Class 777 EMUs built by Stadler ran regular short trips carrying passengers during the two-day event.

Class 230 010 at Rail Live 2021

As someone who will, as a passenger benefit from the introduction of both units, I was keen to step aboard and take a look. My first port of call was the Class 230 which I was especially keen to take a look at inside for the first time, as I have been involved in campaigning for their introduction on the Wrexham-Bidston line for since 2016. I have to say that on first impression I was genuinely impressed. A small number of detractors like to remind people that they are ex London underground stock dating from the late 70s, but honestly, sitting onboard the Class 230  you would never know their past. I think even those who were sceptical at first have been won over by the transformation.

Below is a short video which shows the full interior of the Class 230


During the conversion from D78 stock to Class 230 the interiors were completely stripped back to the shell and the new high-quality fixtures and fittings installed. The two driving motor cars were very quiet, more akin to an electric train than a DMU, which isn't surprising as the Class 230s are diesel-electric hybrids. The middle trailer car under which the diesel gen-sets are housed was, if I'm being honest a little rattly whilst the engines were running, however nowhere near as noisy as the Class 150s which the 230s are set to replace. I was assured by Vivarail that they are working to address the rattle from the fixtures and fittings, but honestly, even with the engines on, the middle car is a lot quieter than a Class 150.

The interior of TfW's Class 230s


The Class 230s feature all the modern amenities that passengers now expect, such as charging points and an accessible toilet. In addition, the Class 230 also features air conditioning, something which even the fully refurbished Class 150s don't have.

For much more information about the Class 230 click here

There was so much to see and do at Rail Live I had to return for day 2 to step aboard Merseyrail's Class 777 built by Stadler. If I was impressed by the Class 230 then I think I was stunned by the Class 777. When you step onboard it truly is astounding, especially when, as a passenger you are more accustomed to Class 507/8s. The sense of space is something else, looking down all 4 carriages through the extra-wide gangways it feels almost like a TARDIS. Class 777s have 4 carriages but the units are only 4m longer than Class 507/8s, at 64.98mm, compared to 3 car 507/8s which are 60.7m long. The designers have cleverly used the space to increase the 333 maximum passenger capacity of the 507/8s, to 475 seated and standing for the 777s. There is also more legroom, passengers who travel on 507/8s will be familiar with the awkward angles at which you have to sit when there are passengers sat opposite, not with the 777, there is space to comfortably seat 2 adults opposite each other, without touching knees.

Below is a short video which shows the full interior of the Class 777


The Class 777 on display number 002 is a little bit different from the rest of the fleet, as it's fitted with a 67kwh hour battery, meaning that it can operate beyond the 3rd rail network. 002 is currently being tested on the Merseyrail network to see how well it can perform, to ensure that the added weight of the battery has no impact on its overall performance compared with the non-battery classmates, but also how well the battery itself can perform. So far 002 has been able to travel from Sandhills to Southport on battery power alone, a journey of approximately 20 miles. So far all indications are that 002 can perform just as well as units without batteries, so the added weight of the battery doesn't appear to cause any noticeable reduction in acceleration or braking performance.

The trial of 002 opens up the very real possibility of extending the Merseyrail network, or the reach of the 777s beyond the 3rd rail network and 777s fitted with batteries could potentially operate as far as Wrexham on the Wrexham-Bidston line, or from Ellesmere Port to Helsby. For the former to happen a number of 777s would likely have to be fitted with larger batteries with a short section of 3rd rail fitted at the Wrexham end for rapid charging. If you would like to know more about the possibilities that the battery variants offer click here.

Class 777 interior

Merseytravel is currently working on a business case that may see all 777s fitted with batteries, which would mean the planned extension of the network to a new station at Headbolt Lane would not require any further electrification. Fitting all 777s with batteries would also help balance the power from regenerative braking which would otherwise be sent directly back down the 3rd rail.

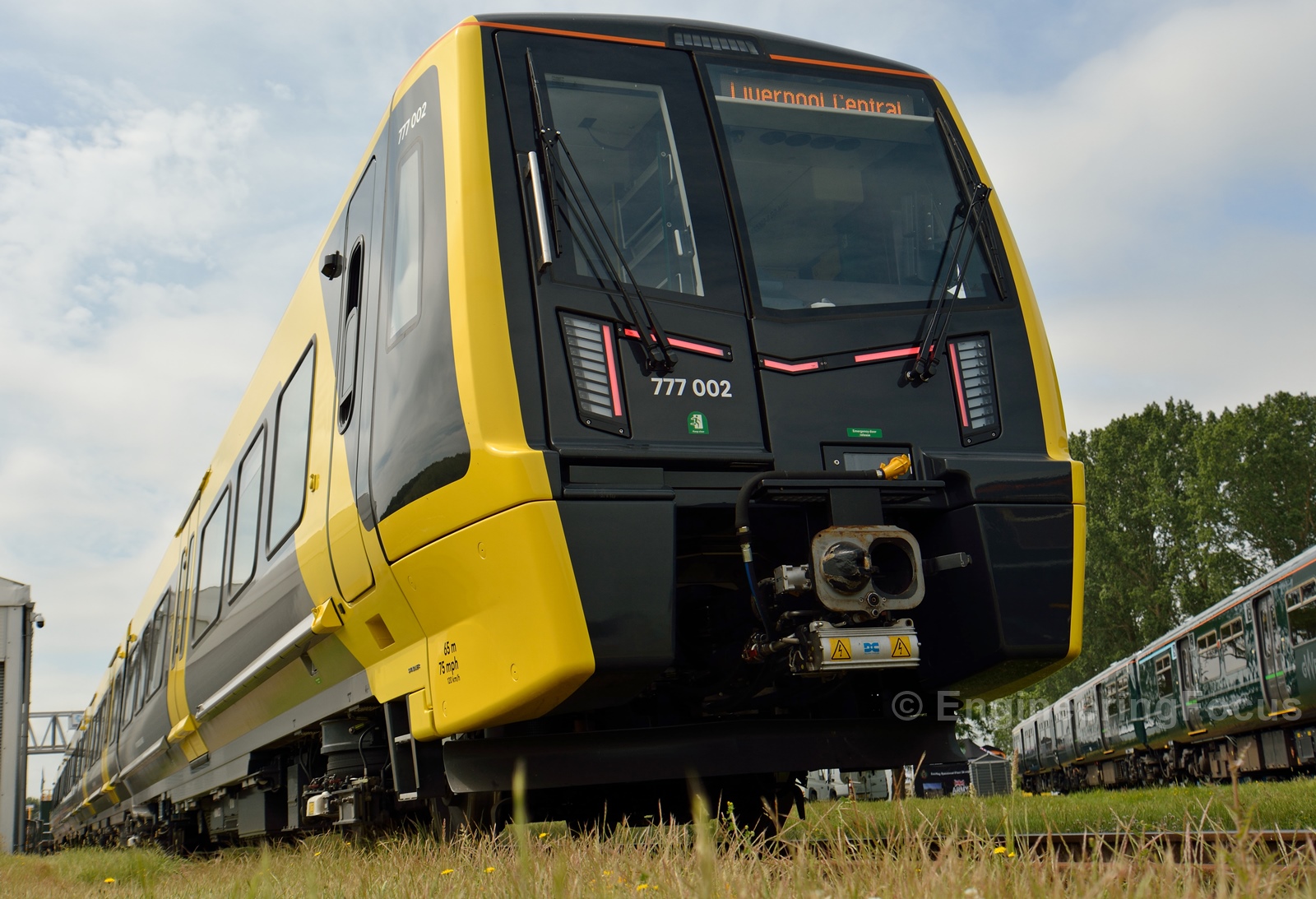

Class 777 002 at Rail Live 2021


One of the most anticipated features of the Class 777 is the step-free access that they will provide across the Merseyrail Network once in service. Merseytravel has had to make some modifications to platforms, which you can find more information about here, but the 777s themselves have been designed with step-free access in mind. The units have been designed so that the floor of the carriage is level with a UK platform set at 915mm, with an offset of 730mm. To ensure that there is a minimal gap the units are also fitted with a retractable step which has an infrared camera fitted inside. As the step extends the camera detects the platform edge and ensures that there is no more than a 35mm gap between the step and platform. The step, combined with the camera and the 4 slightly shorter carriages helps to ensure that the gaps are equally spaced even on curved stations.

Class 777 retractable step



Rail Live has become an event at which rolling stock manufactures want to show off their new units, but primarily the event provides infrastructure and services companies with an opportunity to display what they have to offer. In part 2 I will be taking a look at some of the plant and engineering that was also on display.
